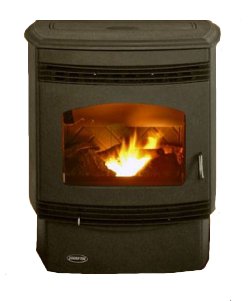

The Quadrafire Santa Fe Pellet Stove And Fireplace Insert

The Quadrafire Santa Fe is constructed of fabricated steel with a cast iron top and optional decorative cast iron pedestal base for the freestanding version. This stove is designed with clean, uncluttered modern styling.

The Santa Fe has patented automatic ignition and jam-free feed systems, an aluminum heat exchanger, and a revolutionary easy clean firepot

The stove has a large, attractive arched viewing window which shows the herringbone brick effect steel firebox back as well as the fire with its realistic log set.

It comes with a thermostat as standard, with the option of corded or cordless remote controls.

This stove can burn shelled corn as well as wood pellets. The advised mix is 50:50 but corn can be used by itself. See Comments below.

If you are unsure of the meanings of the terms in the pellet stove review below,or their implications, please go to the Pellet Stove Reviews page for an explanation.


Heating Area 1,500 sq. ft.

Max. Heat Output 30,000 btu.

Automatic Ignition Yes

Manual Ignition If needed

Hopper Capacity Freestanding 52 lbs. Insert 45 lbs.

Burn time Freestanding 34 hrs. Insert 30 hrs.

Fuel Type Standard or premium grade wood pellets / corn

Glass Air Wash Yes

Built in Blower Yes

Convection Blower Capacity 160 cfm.

Thermostat Compatible Yes, included as standard

E.P.A. Approved Yes

Emissions 0.8 gr./hr.

Efficiency 84%

Dimensions Freestanding: See below for Insert

Height 28.7 in.
Width 25.5 in.
Depth 21.3 in.

Weight Freestanding 240 lbs. Insert 214 lbs.

Window Size 14.5 in. by 9.5 in.

Flue Vent Size 3 in.

Top Vent No

Rear Vent Yes

Rear Vent Height Freestanding 17.3 in.

Battery Backup No See Stove Sentry

Surge Protector Recommended

Colours Matte black

Exhaust Temperature Sensor No

Low Draft Shutdown Yes

Construction Type Fabricated steel, cast iron top, optional cast iron pedestal

Automatic Shutdown and Re-ignition Yes, but not with 100% corn

Warranty Limited Lifetime

One Year: Parts and material except as covered by Conditions, Exclusion, and Limitations

Two Years: Igniters, Electronic Components,and Glass. Blowers

Three Years: Firepots, Castings & Baffles, Firebox, Heat Exchanger.

90 Days: All Replacement Parts


Decorative cast iron pedestal base, (freestanding).

Door trim in gold, black nickel or satin nickel finish

Grille in gold or satin nickel finish

Four-piece log set

Extra top log

Programmable thermostat

Remote controls

Dimensions for Santa Fe Fireplace Insert


Dimensions Insert

Height 25.4 in.
Width 28.9 in.
Depth 8.7 in. onto hearth 12.75 in. into fireplace

Min. Fireplace Size

Height 23 in.
Width 28.9 in.front, 23.6 in. back
Depth 12.75 in.

Insert Surround Dimensions

Standard 30 in. by 40 in.
Large 33 in. by 50 in.


If using corn without pellets as fuel in the Quadrafire Santa Fe, the corn won't automatically reignite unless it has some wood pellets mixed in. This means it's necessary to keep the stove on.

To keep the stove running, set the thermostat to maximum. Set the stove itself to low or medium so that the thermostat doesn't get tripped.



Empty and clean the burn pot


Empty ash pan, clean ash from firebox, clean window glass


Clean beneath the heat exchanger, check the door latch and gasket, clean the heat exchanger and drop tube, clean the hopper.

Every Year:

Clean the blowers, the exhaust passages and the flue. Clean out the firebox.


If you would like to leave a review of the Quadrafire Santa Fe, please use the form on the Contact Page.
