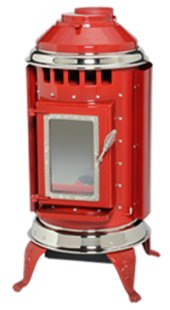

The Thelin Parlour Pellet Stove

The Thelin Parlour wood pellet stove is the bigger brother of the Gnome. It's an ornate pot-belly style stove with the convenience of operating on wood pellets.

Capable of heating up to 1,500 square feet, the Parlour produces 40,000 btu. and is available in six porcelain ceramic colours.

The hopper on this stove will hold 40 lbs. of wood pellets and it can burn for 30 hours on one fill using the low heat setting.

The convection and combustion fans in this stove both run from one motor, which has the advantage of quiet operation and extremely low electrical power consumption, (27 watts).

Battery backup is built in to the Thelin Parlour - all you need is a twelve volt power lead and a deep cycle battery. The battery will automatically be trickle charged. A thermostat is available as an option. If you are unsure of the meanings of the terms in the pellet stove review below,or their implications, please go to the Pellet Stove Reviews page for an explanation.

Thelin Parlour

Heating Area 1,500 sq.ft.

Max. Heat Output 40,000 btu.

Min. Heat Output 10,400 btu. zero with optional thermostat

Automatic Ignition Yes, see comments below.

Manual Ignition If required.

Hopper Capacity 40 lbs.

Burn time 30 hrs. on low heat setting

Fuel Type Premium grade wood pellets

Glass Air Wash No

Built in Blower Yes

Convection Blower Capacity Variable, see comments below

Thermostat Compatible Yes, see comments below

E.P.A. Approved Yes

Emissions 3.23 gr./hr.

Efficiency 82.7%

Dimensions

Height 43 ins.
Width 20 ins
Depth 20 ins

Weight 180 lbs.

Window Size 10.5 in. by 6 in.

Flue Vent Size 3 in.

Top Vent No

Rear Vent Yes

Rear Vent Height 12.5 ins

Battery Backup Yes, a battery connected to this stove is automatically trickle charged.

Surge Protector Recommended

Colours Ebony Black , Ivory, Teal Green, Cobalt Blue, Burgundy Red, and Rich Brown in a porcelain enamel coating.

Exhaust Temperature Sensor Yes

Low Draft Shutdown Yes

Construction Type Fabricated steel body, cast iron top, door and legs.

Automatic Shutdown and Re-ignition Yes

Warranty

Five years for heater cabinet and body.
One year for electrical components and auger system.
Original purchaser only

Options

Six porcelain enamel colours
Nickel or gold trim
Thermostat
Battery power cable

Comments

Automatic ignition will not function when running on twelve volt supply.

In a neat bit of design, the combustion and convection fans both run directly from the same motor with blades of different pitch.

When running on a twelve volt supply, the stove will not ignite automatically if the thermostat shuts it down. It must be set to cycle between high and low.

Maintenance

Weekly: Clean out the stove and hopper with an ash vacuum. Clean the viewing glass. Clean the exhaust fan blades and the heat exchanger. Clean the air intake fan guard.
Monthly: Check the clean out tee and the venting for a build up of fly ash.

The 'Parlour' has a 'clean' setting which uses its fan to clean the combustion housing and the fan blades making this very easy.

Review

If you would like to leave a review of the Thelin Parlour pellet stove, please use the form on the contact page
